Application:

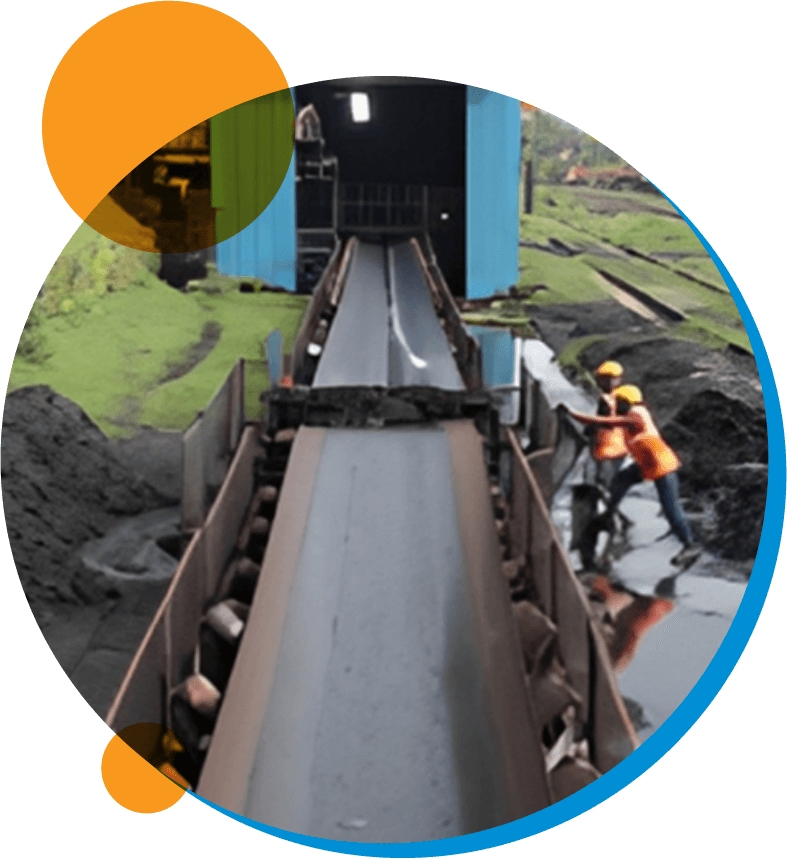

1400mm Belt Width tripper conveyor used for Rake loading

Customer Concerns:

• Spillage of material
• Manpower engagement
• Disturbance in conveyor movement

Situation at Hand:

• Two polyurethane blade scrapers were mounted in the concerned conveyor. The scrapers were ineffective to clean the carryback due to the sticky & the wet nature of the material conveyed.
• Customer had engaged V plough scraper on the carrying side of the belt to divert the material to the side. Without the V plough, the material would have accumulated at the head end.
• Engagement of manpower was required on a daily basis to clean the aforementioned spillage.

Solution Implemented:

HDPUL pre-scraper & technologically advanced C2 metallic blade main scraper to handle belt runback were installed to solve the problems.

Results Obtained:

Customer still uses the V plough as a diverter, but the spillage has drastically reduced from 9ton/day to 0.1 ton/day This resulted into the following:

• Reduction of cleaning manpower reduced from 100 man-days to 8 man-days.
• Engagement of truck for material carrying reduced for 25 days a month to 4 days a month.

Customer saves 1.3mn INR per year.
